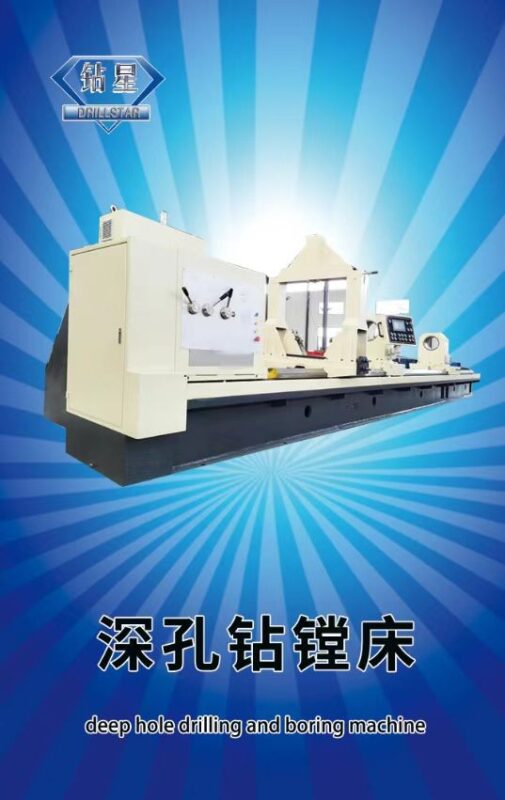

The Precision Powerhouses: Unlocking the Potential of Deep Hole Drilling and Boring Machines

Deep hole drilling and boring machines represent the pinnacle of precision machining, enabling industries to create exceptionally long, straight, and accurately sized bores with tight tolerances. These specialized machines are indispensable in sectors ranging from aerospace and energy to automotive and mining, where components like engine blocks, hydraulic cylinders, gun barrels, and geological boreholes demand flawless cylindrical holes—sometimes reaching depths 100x their diameter. As manufacturing evolves toward more complex and durable components, these machines continue to push the boundaries of what’s mechanically possible.

1 Core Principles and Operation: The Science of Depth

Deep hole drilling (DHD) and boring are distinct but complementary processes. Drilling creates the initial hole, while boring enlarges or refines it to ultra-precise dimensions. Modern machines integrate both functions, leveraging advanced physics to maintain stability and accuracy:

• Tool Guided by the Hole Itself: Unlike conventional drills, deep hole tools use the bore’s wall for stabilization. The cutting head is supported by guide pads or bushings, minimizing deflection—a critical feature for holes exceeding 10 meters .

• High-Pressure Coolant Systems: Coolant isn’t just for cooling; it evacuates chips and reduces friction. In reverse circulation systems , cuttings travel through an inner tube while coolant flows externally, preventing clogging in deep bores .

• Pilot-and-Ream Methodology: Projects like the 206m shaft used a 270mm pilot hole drilled top-down, followed by a bottom-up reaming operation with a 1.6m diameter cutter. This approach ensures alignment and reduces stress .

2 Key Machine Components: Engineering Reliability

Precision in deep hole machining hinges on specialized subsystems working in concert:

• Tool Heads:

  • RC Hammers: Feature inner tubes for confined cuttings transport and wear-resistant components for easy replacement.

  • Expandable Boring Heads: Adjustable cutters enable multi-diameter boring in a single pass.

• Sealing & Lubrication:

  • Advanced Oil Acceptors: Modern machines use spherical-seal systems (not rigid ones) for flexible contact with workpieces, eliminating high-pressure coolant leaks.

• Guidance & Stability:

  • Steady Rests: Support long workpieces to dampen vibration.

  • Laser/LED Alignment: Ensures near-zero deviation over extreme depths.

Table: Drilling vs. Boring Functions in Deep Hole Machines

3 Cutting-Edge Innovations: Speed, Precision, Longevity

Recent breakthroughs address historical challenges like tool wear, accuracy loss, and downtime:

• High-Frequency Hammer Designs:  compact air chambers are used to boost piston strike rates, increasing penetration by 30% while reducing weight.

• Modular Tooling: Assembled gun drills (e.g., for engine block oil ducts) allow customized configurations for complex multi-angle bores .

• Automated Tool Management: PLC-controlled systems auto-adjust feed rate and torque, preventing breakage in variable strata.

4 Industry Applications: Where Depth Meets Demand

• Mining & Geology:

  • Raise boring machines drill shafts for ventilation or ore transport. The Junde Mine achieved a 206m-deep, 1.6m-diameter bore using a pilot hole and carbide-tipped reamer.

• Energy:

  • Drill gun barrels, hydraulic cylinders, and turbine shafts with tolerances ≤0.01mm.

• Automotive:

  • Engine block coolant/oil passages (using modular gun drills).

Table: Technical Specifications of Leading Machines

5 Overcoming Critical Challenges: Lessons from the Field

• Sealing Failures: Traditional rigid seals caused coolant leaks. The fix? Swappable spherical sealing discs that self-align with workpiece surfaces.

• Deep Hole Straightness: Drill operators use “constant pressure modulation” in soft strata to prevent deviation—a must for 200m+ bores.

• Tool Servicing: RC45’s top-access inner tube replacement slashes downtime during bit changes.

6 The Future: Automation and Adaptability

Next-gen machines will leverage AI for real-time adjustments:

• IoT Sensors: Monitor vibration, temperature, and chip flow to predict tool failure.

• Hybrid Drilling-Boring Heads: Combine drilling, reaming, and finishing in one tool.

• Sustainable Cooling: Bio-based coolants and closed-loop systems to reduce waste.

In Summary: Deep hole drilling and boring machines are no longer niche tools but strategic assets for heavy industry. From Epiroc’s high-frequency RC hammers to spherical-sealed boring rigs, innovations continue to solve age-old problems—enabling deeper, faster, and more precise operations. As demands grow for deeper bores in tougher materials, these machines will remain at the forefront of industrial progress.
