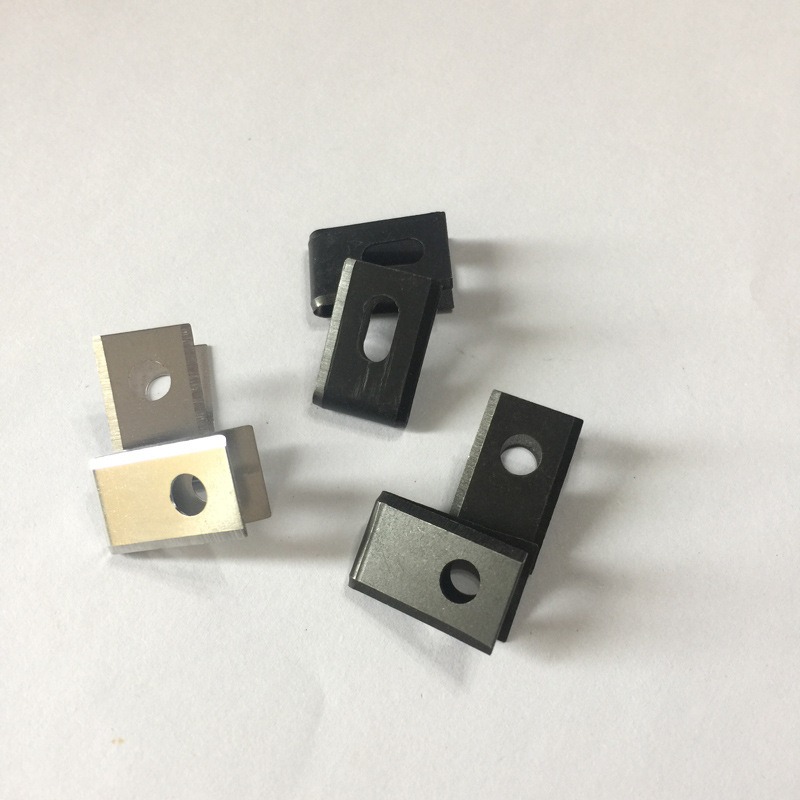

Our Grooving Inserts are precision-manufactured from ultra-fine grain tungsten carbide, with high-performance PVD composite coatings. Designed exclusively for CNC lathe grooving, parting, and necking operations, these inserts feature optimized cutting geometry and chip breakers. They deliver excellent cutting stability, low tool wear, and superior workpiece surface finish. Suitable for machining a wide range of engineering metals, they are widely used in automotive parts, hydraulic components, shaft machining, and general mechanical manufacturing industries.
Descripción general del producto
Our Grooving Inserts are precision-manufactured from ultra-fine grain tungsten carbide, with high-performance PVD composite coatings. Designed exclusively for CNC lathe grooving, parting, and necking operations, these inserts feature optimized cutting geometry and chip breakers. They deliver excellent cutting stability, low tool wear, and superior workpiece surface finish. Suitable for machining a wide range of engineering metals, they are widely used in automotive parts, hydraulic components, shaft machining, and general mechanical manufacturing industries.
Tabla de especificaciones del producto
| Categoría | Detalles |
|---|---|
| Nombre del producto | CNC Grooving Inserts |
| Common Standard Models | MGMN 200-G / MGMN 300-G / MGMN 400-G (Universal grooving series) |
| Material | Ultra-fine grain cemented carbide (WC-Co) substrate
Optional coatings: TiAlN PVD, TiCN PVD, AlTiN PVD coating |
| Dimensiones clave | Cutting width: 2.0 mm / 3.0 mm / 4.0 mm
Maximum grooving depth: 8-12 mm Overall length: 18-22 mm Thickness: 3.5-4.0 mm |
| Tolerancia | Cutting width tolerance: ±0.03 mm
Tolerancia de dimensión: ±0,02 mm |
| Rompevirutas | Specialized grooving chip breaker, efficient chip removal, suitable for both rough grooving and finish grooving |
| Materiales aplicables | Carbon steel, alloy steel (ISO P10-P40), stainless steel (ISO M15-M35), cast iron (ISO K10-K25) |
| Solicitud | External grooving, internal grooving, parting-off, necking, and slotting on CNC lathes |
| Precio de referencia del mercado | Single piece: $2.8 – $3.5 USD
Bulk order (≥500 pieces): $1.9 – $2.5 USD per piece Cantidad mínima de pedido (MOQ): 10 piezas |
| Especificaciones de embalaje y envío | Embalaje interior: Caja de inserción de plástico (10 insertos por caja)
Inner box size: 75 mm × 50 mm × 20 mm Net weight per inner box: 0.045 kg Embalaje exterior a granel: cartón corrugado de calidad de exportación (100 cajas interiores por caja) Carton size: 360 mm × 260 mm × 190 mm Gross weight per carton: 5.8 kg |
| ALA FORMATO | CÓDIGO | Dimensiones (mm) | |||
| T | O | L | R | ||
| Estilo1000 == |
1180 | 3.2 | 9.5 | 12.7 | 4.8 |
| 1190 | 3.2 | 9.5 | 19.1 | 4.8 | |
| 1200 | 3.2 | 12.7 | 12.7 | 6.4 | |
| 1210 | 3.2 | 12.7 | 19.1 | 6.4 | |
| 1215 | 3.2 | 19.1 | 19.1 | 6.4 | |
| 1220 | 4 | 9.5 | 14.3 | 4.8 | |
| 1230 | 4 | 9.5 | 19.1 | 4.8 | |
| 1240 | 4 | 15.9 | 15.9 | 6.4 | |
| 1250 | 4.8 | 7.9 | 11.1 | 4.8 | |
| 1260 | 4.8 | 7.9 | 15.9 | 4.8 | |
| 1270 | 4.8 | 9.5 | 12.7 | 4.8 | |
| 1280 | 4.8 | 9.5 | 15.9 | 4.8 | |
| 1290 | 4.8 | 9.5 | 19.1 | 4.8 | |
| 1300 | 4.8 | 11.1 | 15.9 | 6.4 | |
| 1310 | 4.8 | 11.1 | 20.6 | 6.4 | |
| 1320 | 4.8 | 12.7 | 12.7 | 6.4 | |
| 1330 | 4.8 | 12.7 | 19.1 | 6.4 | |
| 1340 | 4.8 | 19.1 | 19.1 | 6.4 | |
