GD-600 gun drill sharpner - AGrade Carbide

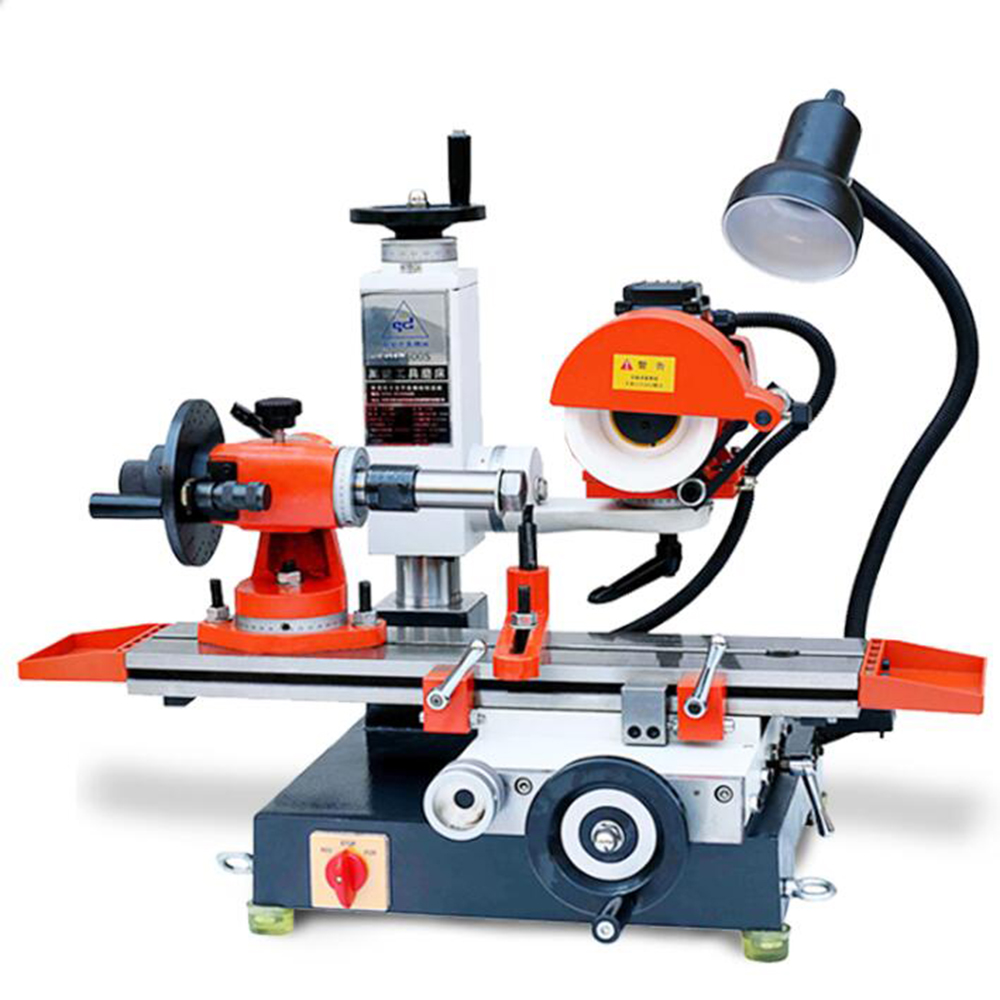

The GD-600 standard gun drill deep hole tool grinder adopts precision rolling guide rails and high-speed motors, ensuring smooth operation and low friction. The Bench grinder can rotate in the horizontal and vertical planes, expanding the use range of the machine tool.

Combined with grinding fixtures, it can accurately and efficiently grind various gun drills.

50Q gun drill fixture is a specialized tool for grinding gun drill blades; Its structure is compact, clamping is convenient and reasonable, adjustment is simple, and processing time is saved (one clamping can complete all angles of blade grinding); The processed drill blade has high strength and good accuracy;

Grinding range: ¥ 3~¥ 40mm; This grinder is suitable for deep hole gun drilling and grinding angles, with a beautiful appearance, compact size, convenient handling, stable accuracy, and particularly lightweight and flexible operation

Min; Sold both domestically and internationally!

उत्पाद	GD-600
Left and right travel of workbench	270mm
Front and rear travel of workbench	170mm
Vertical lifting distance of grinding wheel	140 मिमी
Grinding wheel rotation angle	360°
Wheel Speed	2800 RPM
Motor	550W 220V/380V
wheel dimensions	125 x 50 x 32mm
Gross weight	160kg
（LxWxH）package(LxWxH)	76x65x65cm
