CNC Dual-axis Gun Drilling စက်

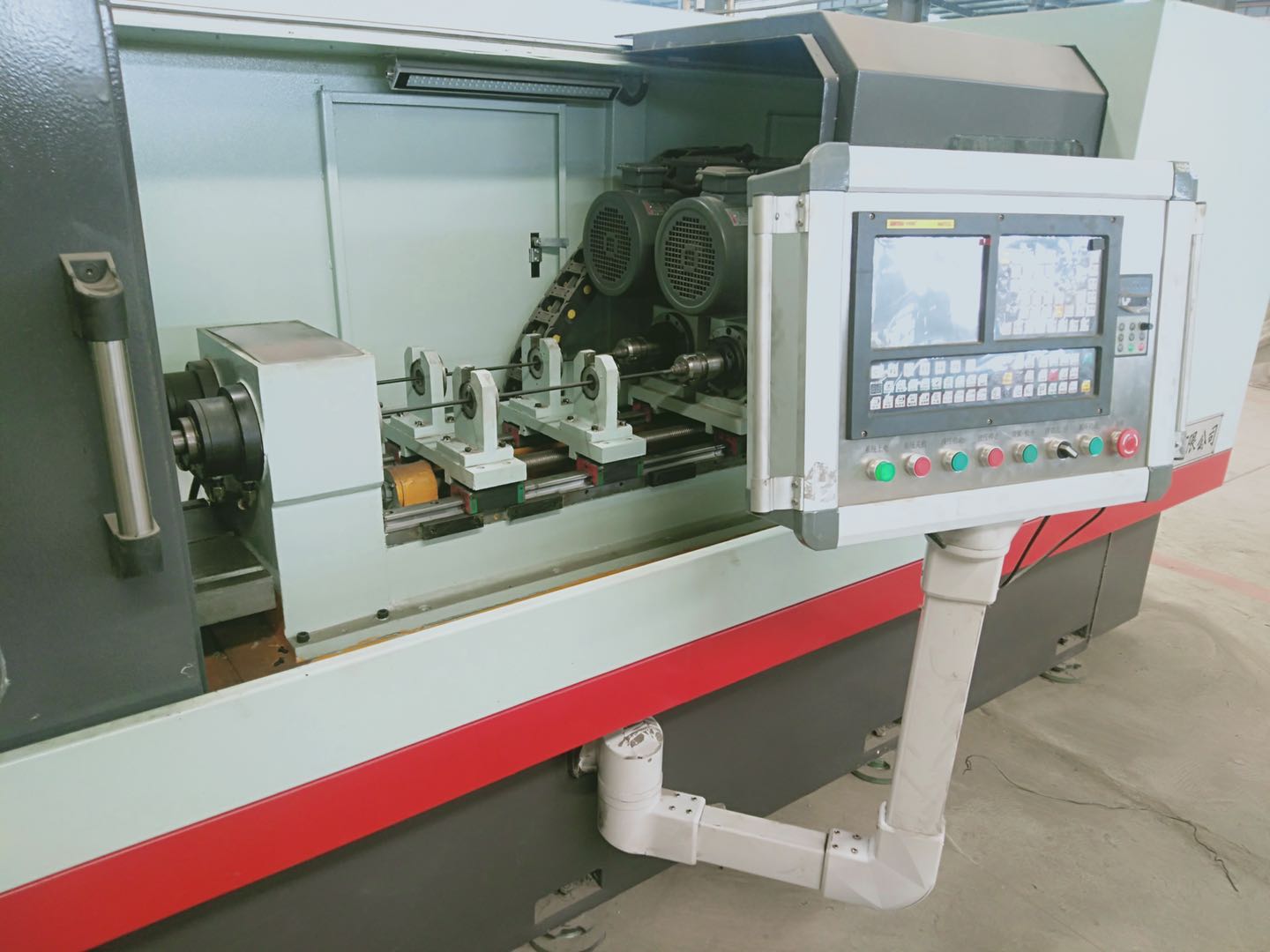

CNC double-circle gun drilling machines  mainly use SIEMENS, FANUC or KND CNC systems to control the processing process and realize automation. The gun drill mainly adopts a dual-spindle structure, which can process two workpieces at the same time and is suitable for processing coaxial holes on shaft parts; the headstock mainly drives the workpiece to rotate, with a constant speed, and is responsible for positioning; linear guides are used to ensure the relative motion accuracy between the tool and the workpiece.

Main functions

Dual-axis synchronous processing: Process two workpieces at the same time, high precision, improve efficiency, excellent aperture and surface quality.

Wide range of material processing: various metal materials, parameter adjustment to adapt to different characteristics.

Complex hole processing: multiple hole programming processing, special hole can also be processed.

Automated intelligent processing: Automatically complete the processing process, some have intelligent functions.

Strong process adaptability: Select appropriate tool parameters, multi-process processing, to meet different needs.

Technical indicators

Drilling range：Φ4～Φ20mm/Φ4～Φ30mm/Φ6～Φ40mm

Maximum drilling depth：500/1000/1500/2000/2500mm



Gun drill drilling method, dual spindle structure, capable of processing 2 workpieces simultaneously, suitable for processing coaxial holes on shaft parts

Headbox: drives the workpiece to rotate at a constant speed of 117r/min; Positioning.

CNC system： SIEMENS/FANUC/KND

machine parameter
မော်ဒယ်		ZK2102series	ZK2013series			ZK2104 series
		double spindle	double spindle			double spindle
main parameter	drilling range	4mm-20mm	4mm-30mm			6mm-40mm
	max drilling depth	500/1000/1500/2000/2500mm
	spindle numbers	2
	spindle spaces	140mm
drilling box	main power	7.5kw	11kw			15kw
	max rotating speed	5000r/min				3500r/min
headstock	power	1.5w					1.5x2w
	rotating speed	120r/min
	feed range	5-500mm/min
Tools feed rate	fast movement speed	4m/min
	Feed motor torque	7.5Nm				10Nm
	max flow	100L/min				150L/min		200L/min
Cooling system	max pressure	10Mpa						8Mpa
	filtration	20um
	Aperture accuracy	IT7-IT10
machining accuracy	roughness	Ra0.8um-Ra3.2um
	Hole center deviation	workpiece not rotates1mm/1000mm,workpiece rotate:0.5mm/1000mm.
power	Total power of machine	25kw		33kw				42kw
