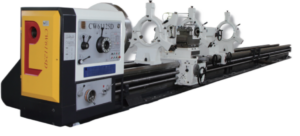

CW6 1/2XXD စီးရီး အလျားလိုက် လေစက်

These lathes can perform to turn endfaces, cylindrical surfaces and intemal holes of marious parts as well as  metric, inch, module and pitch threads.  The top slides can be operated indivedu-ally by power for cutting short taper surface also,  can be turned automatlcally through the compound movement combining long tudinal feed with the top slide feed, moreover, the machines may be used for drilling, boring and trepanning. They are characteristics of power, high spindle speed, highrigidity. The various ferrous and non ferrous metals parts may be turned through the heavy cutting by carbon alloytools.

အဓိက သတ်မှတ်ချက်များနှင့် အင်္ဂါရပ်များ-

သတ်မှတ်ချက်		MODELS
		CW6 1/2 100D	CW6 1/2 125D	CW6 1/2 140D	CW6 1/2 160D
စွမ်းရည်	Max.swing အချင်း	ф1040mm	ф1290mm	ф1440mm	ф1640mm
	Max.swing diameter over carriage	ф650mm	ф900mm	ф1030mm	ф1030mm
	Max.swing diameter on gap	ф1500mm	ф1750mm	ф1900mm	ф2100mm
	အိပ်ရာအကျယ်	755mm
	Max.length of workpiece	1000mm  1500mm   2000mm -12000mm
	The top two largest bearing	6t
Spindle	နှပ်နှာခေါင်း	A215
	ဗိုင်းလိပ်တံအချင်း	ф120mm  ф130mm
	Taper of spindle bore	Metric No.140
	ဗိုင်းလိပ်တံအရှိန်အကွာအဝေး	3.15-315r/min    21Kinds（Forward） 3.5-290r/min  12Kinds（Reversal）
	Spindle front bearing inner diameter	ф200mm
ကျွေးသည်။	Longitudinal feeds range	0.1-12r/min    56Kinds
	Transversal feeds range	0.05-6mm/r    56Kinds
	Metric threads range	1-120mm    44Kinds
	Inch threads range	3/8-28TPI 31Kinds
	Moudle threads range	0.5-60mm      45Kinds
	Pitch threads range	1-56TPI  25Kinds
tailstock	Taper of tailstock sleeve	Metric80#
	Travel of tailstocd sleeve	300mm
	Diameter of tailstocd sleeve	ф160mm
MOTORS	ပင်မမော်တာပါဝါ	22KW
	Rapid motor power	1.5KW
	Coolant pump power	0.125KW
weight	5m	13600kg	14300kg	14600kg	15100kg
		For every 1m increase or decrease, the weight increases or decreases by 900kg
