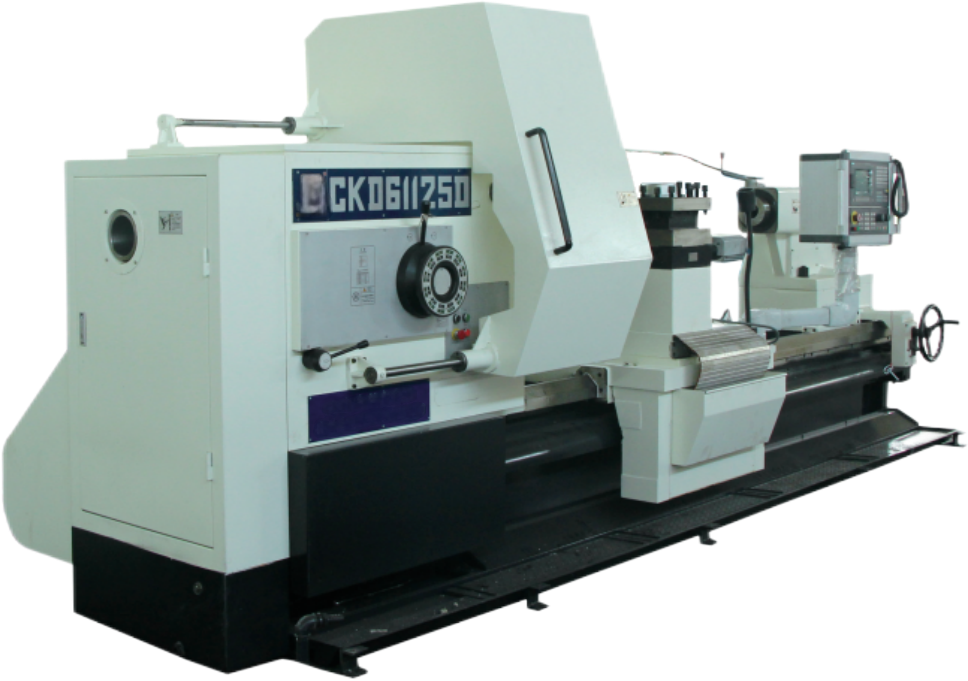

CKD611XXD series CNC lathe

CKD611XXD series CNC lathes are independently developed by our factory and are the best among large-scale CNC lathes. A series of excellent machine quality, such as high efficiency, high stability, high precision, high versatility and high rigidity, are reflected in the design and manufacture of CKD611XXD series CNC machine tools. The bed adopts flat-V guide rails, which are subjected to medium frequency quenching and precision grinding, with high rigidity and can withstand heavy-load precision cutting. The machine tool is equipped with KND2000T control system and servo feed motor, with perfect functions and reliable performance. Domestic famous brand ball screws are selected, with good precision and high efficiency.

SPECIFICATION			TECHNICAL DATA
			CKD61100D	CKD61125D	CKD61140D
CAPACITY		Max.swing diameter over bed	1040mm	1290mm	1440mm
		Max.swing diameter over cross slide	650mm	900mm	1050mm
		Max.workpiece length	1000 1500 2000 3000 4000 5000 (mm)
SPINDLE		Range of spindle speed	3.15-315r/min
		Spindle bore diameter	120mm  130mm
FEEDS		Max.stroke onX-axis	650mm
		Max.stroke on Z-axis	800、1300、1800、2800、3800、4800(mm)
		Rapid speed X-axis	4m/min
		Rapid speedZ-axis	4m/min
CNC SYSTEM	KND2000T
TAILSTOCK		Morse taper of tailstock sleeve	80#
		Travel of tailstock sleeve	300mm
		Diameter of tailstock sleeve	Φ160mm
MOTOR	22kW
TOOL TURRET		Driving method	Rower
		No.of tools	4
		Section size of toolbar	32×32mm
OTHERS		Machine height	2243mm
		Machine width	2363mm
		Machine length	4500、4800、5500、6500、7500、8500(mm)
