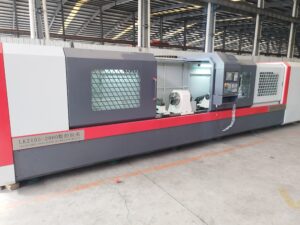

CNC Broaching Machine

CNC broaching machine is a kind of mechanical equipment specially used for processing rifling. Its main feature is that it adopts CNC technology and can realize automatic and precise rifling processing. It can form various types of rifling structures on the surface of the workpiece, such as straight rifling, spiral rifling, etc. by controlling the motion trajectory and processing parameters of the processing

CNC broaching machine is usually composed of machine tool body, CNC system, tool and fixture and other components. The operator inputs the processing program and parameters through the CNC system, and then the machine tool automatically processes according to the set program to achieve efficient and accurate rifling processing.

CNC  broaching machine is widely used in the fields of automobile, aerospace, military industry, etc., and is used to process rifling structures on various parts, such as automobile engine cylinder block, gun barrel, etc. Its advantages include high processing accuracy, high production efficiency, stable processing quality, etc., which can meet the rifling processing needs of different workpieces.

Technical specification				Parameter	Remarks
Work faixa	hole inner diameter			Φ5～Φ30mm
	hole max depth			2000mm
Machine function	X-axis	Feed rate		5 a 500 mm/min	endless
		Rapid travel rate		10000mm/min
		Motor torque		15Nm
	C-axis	Rapid travel rate		3000 mm/min
		Motor torque		6Nm
		Positioning accuracy/ Re-Positioning accuracy		0.02mm
		Distance of travel		360 degree
	Y-axis	Motor torque		15Nm
		Positioning accuracy/ Re-Positioning accuracy		0.03mm/0.02mm
		Machine overall power (appx.)		13KW
		Floor space (length × width)Floor space (length × width)		6500mm×2000mm
		Total weight of the machine (approx.)		7 tons
CNC system	KND system
Cooling System	Maximum flow rate		10L/min			adjustable
