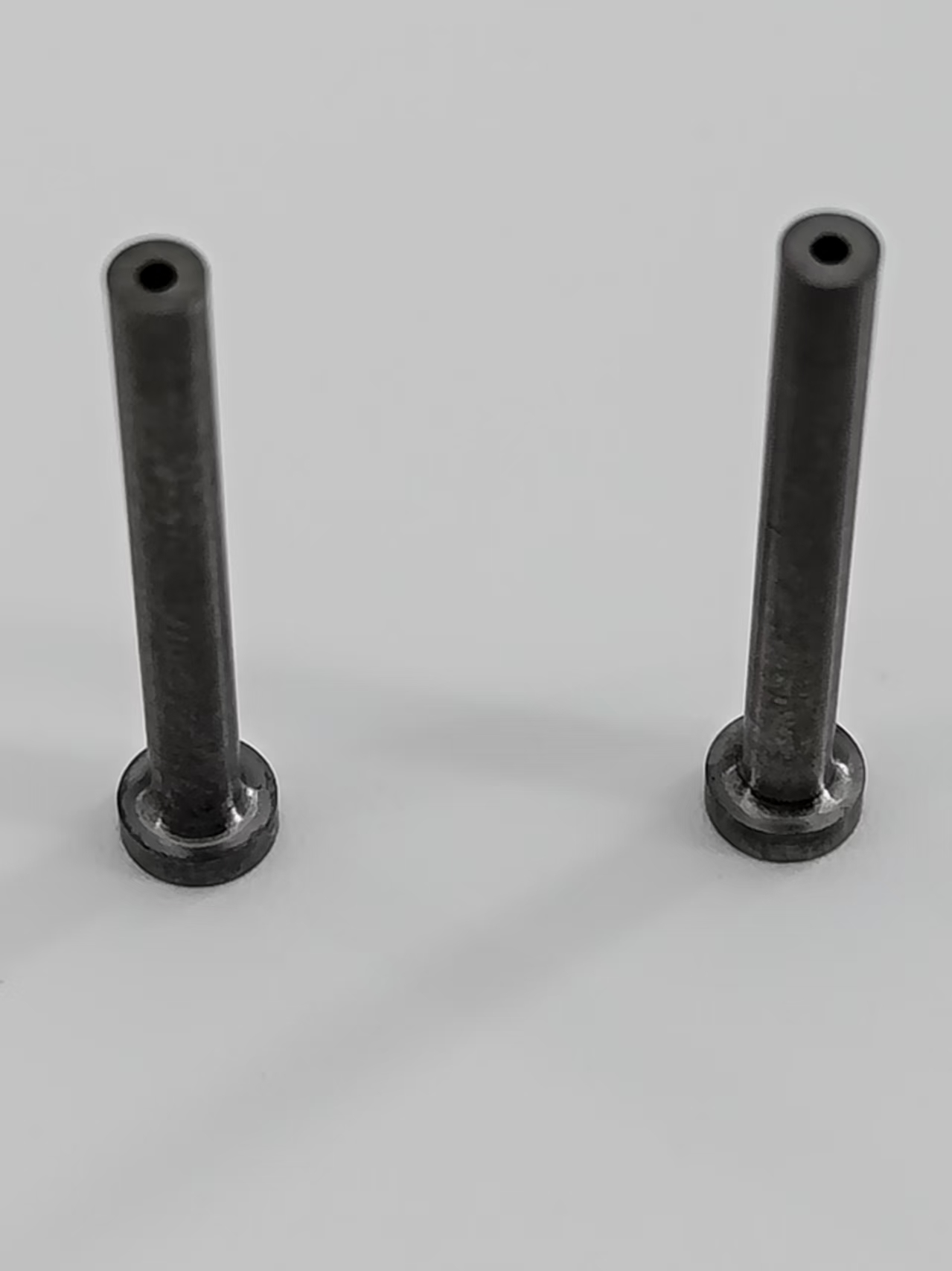

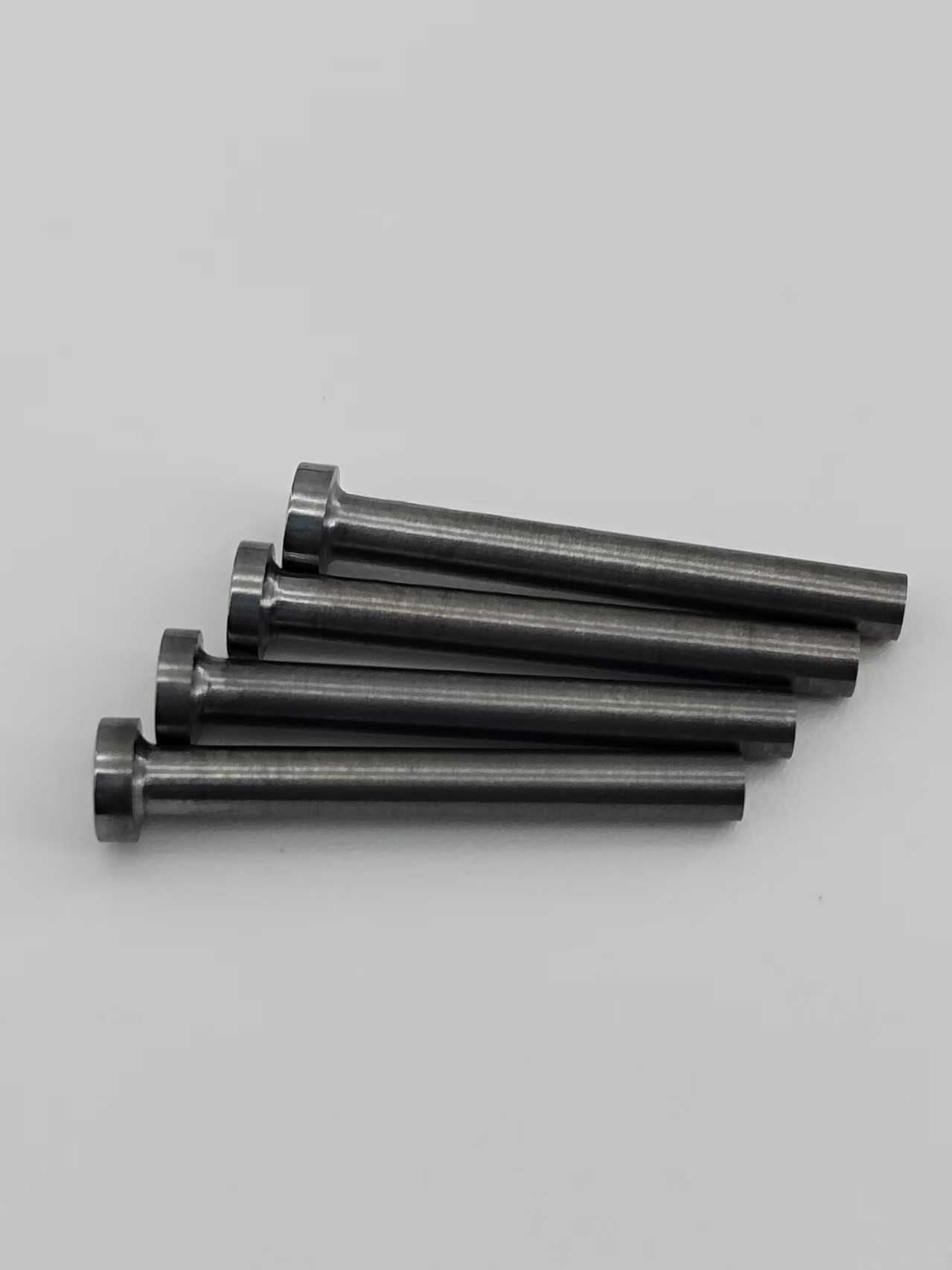

Carbide nozzle, also known as cemented carbide nozzle, is a high-performance precision component made of premium cemented carbide material, widely used in various industrial fields that require high wear resistance, corrosion resistance and high-pressure resistance.

Категория:

Обзор продукта

Carbide nozzle, also known as cemented carbide nozzle, is a high-performance precision component made of premium cemented carbide material, widely used in various industrial fields that require high wear resistance, corrosion resistance and high-pressure resistance. It is mainly used for spraying, conveying, atomizing and guiding media (such as water, air, oil, abrasive particles, chemicals), playing a key role in ensuring stable medium flow, improving work efficiency and extending equipment service life. Our carbide nozzles are manufactured through advanced powder metallurgy technology and precision machining processes, with uniform material structure, precise dimensional tolerance, smooth inner wall and excellent overall performance. They are widely applied in sandblasting equipment, spraying machinery, aerospace, automotive manufacturing, metallurgy, chemical industry, environmental protection and other industries.

Основные характеристики

  • Superior Wear Resistance: Made of high-purity cemented carbide (WC-Co), with hardness up to HRA 90-94 and density of 14.5-15.0g/cm³, which is 5-10 times more wear-resistant than steel nozzles, effectively resisting abrasion caused by high-speed fluid and abrasive particles, greatly extending service life.
  • Excellent Corrosion & High-Temperature Resistance: Has strong resistance to acid, alkali, salt and other chemical media corrosion, and can work stably in high-temperature environments (up to 600℃), without deformation or damage, suitable for harsh industrial working conditions.
  • Precision Machining & Smooth Flow: The inner and outer surfaces are processed by high-precision grinding and polishing equipment, with smooth inner wall (surface roughness Ra ≤ 0.4μm), no burrs, ensuring uniform medium flow, reducing pressure loss and improving atomization or conveying effect.
  • High Pressure Resistance: The compact structure of cemented carbide gives the nozzle excellent pressure-bearing capacity, which can withstand high pressure up to 50-200MPa, without leakage or burst, ensuring safe and stable operation.
  • Multiple Types & Customization: Available in various shapes, sizes and spray angles, including straight-through type, tapered type, atomizing type, fan-shaped type, etc.; can customize specifications (inner diameter, outer diameter, length, spray angle) according to customer specific application needs.
  • Stable Performance & Cost-Effective: The material structure is uniform, with no defects such as pores and cracks, ensuring consistent performance of each nozzle; long service life reduces the frequency of nozzle replacement, lowers maintenance costs and improves production efficiency.

Core Technical Specifications (Table)

Parameter Item
Specification Details
Remarks
Product Name
Carbide Nozzle / Cemented Carbide Nozzle
High-wear precision flow component
Product Model
[e.g. CN-06, CN-08, CN-10, CN-12, Atom-CN-05]
Customizable according to size and type
Материал
Cemented Carbide (WC-Co), Cobalt Content: 6%-12%
Higher Co content for better toughness; lower for better wear resistance
твердость
HRA 90-94, HRC 68-72
Stable hardness, excellent wear resistance
Плотность
14.5-15.0g/cm³
Uniform material density, no internal defects
Inner Diameter (ID)
[e.g. Φ1mm, Φ2mm, Φ3mm, Φ5mm, Φ8mm, Φ10mm]
Precision tolerance: ±0.01-±0.03mm
Outer Diameter (OD)
[e.g. Φ3mm, Φ5mm, Φ8mm, Φ12mm, Φ15mm]
Matching with equipment installation interface
Overall Length
[e.g. 10mm, 15mm, 20mm, 30mm, 50mm]
Adjustable according to installation space
Nozzle Type
Straight-Through, Tapered, Atomizing, Fan-Shaped, Spiral
Selected according to application scenario
Spray Angle (if applicable)
[e.g. 0°, 30°, 45°, 60°, 90°, 120°]
For atomizing/fan-shaped nozzles only
Pressure Resistance
50-200MPa
Depends on material and structural design
Working Temperature
-40℃ – 600℃
Stable operation in extreme temperature environments
Surface Roughness
Inner Wall: Ra ≤ 0.4μm; Outer Wall: Ra ≤ 0.8μm
Smooth surface reduces fluid resistance
MOQ (Minimum Order Quantity)
[e.g. 50 pcs, 100 pcs, 500 pcs]
Bulk order with exclusive discount
Service Life
5000-20000 working hours (depends on application scenario)
Longer than steel/plastic nozzles

Applicable Scenarios

Our carbide nozzles are designed for harsh industrial environments and diverse application needs, with wide applicability in various fields. Main application scenarios include:
  1. Sandblasting & Shot Peening Equipment: Used as sandblasting nozzles to spray abrasive particles (alumina, silicon carbide) for surface cleaning, derusting, roughening of workpieces, suitable for machinery, automotive, hardware industries.
  2. Spraying & Coating Machinery: Atomizing nozzles for spraying paint, coating, adhesive, ensuring uniform atomization and smooth coating surface, applied in automotive painting, furniture coating, industrial spraying.
  3. Aerospace & Aviation: High-precision carbide nozzles for aircraft engine cooling, fuel spraying, hydraulic system guiding, withstanding high temperature and high pressure, ensuring safe operation.
  4. Metallurgy & Mining: Used in smelting equipment for cooling water spraying, dust removal spraying, resisting high temperature and corrosion, improving equipment stability.
  5. Chemical & Environmental Protection: Corrosion-resistant nozzles for chemical medium conveying, wastewater treatment, flue gas desulfurization, avoiding nozzle damage caused by chemical corrosion.
  6. Automotive Manufacturing: Used in engine fuel injection, cooling system, painting line, ensuring precise flow control and stable performance.
  7. Water Jet Cutting: High-pressure carbide nozzles for water jet cutting equipment, spraying high-pressure water or abrasive water jet to cut various materials.

Packaging & Usage Notes

1. Packaging Specification

Inner Packaging: Each carbide nozzle is packed in a foam plastic tray or vacuum-sealed bag, with separate slots to avoid collision and scratch between nozzles, protecting the precision surface and inner wall. Outer Packaging: High-strength corrugated cardboard carton, with shock-absorbing foam padding inside, standard carton size: [e.g. 40cm × 30cm × 25cm], gross weight per carton: [e.g. 12kg], net weight per carton: [e.g. 11kg]; customizable packaging with logo printing, label pasting for bulk orders.

2. Usage Notes

  • Before installation, check whether the nozzle surface is intact (no scratches, cracks) and the inner wall is smooth; clean the installation interface to avoid impurities affecting the sealing performance.
  • Install the nozzle firmly according to the equipment requirements, ensure good sealing, avoid leakage of medium caused by loose installation under high pressure.
  • Select the appropriate nozzle type and specification according to the medium type, pressure and working requirements; do not use nozzles beyond the pressure and temperature range to prevent damage.
  • During use, regularly clean the nozzle inner wall to remove accumulated impurities and avoid clogging, which will affect the flow and spray effect; use soft tools for cleaning to avoid scratching the inner wall.
  • Avoid collision and falling of the nozzle during transportation and use, as carbide is brittle and easy to break or chip when subjected to strong impact.
  • Store the unused nozzles in a dry, clean and ventilated place, avoid contact with corrosive media, and prevent rust or material damage.
