เครื่องเจาะปืนแกนเดี่ยว CNC

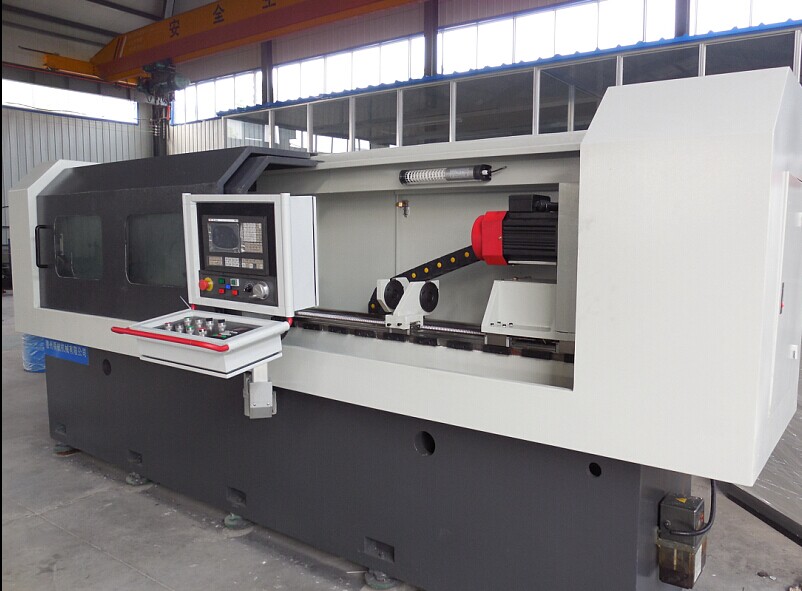

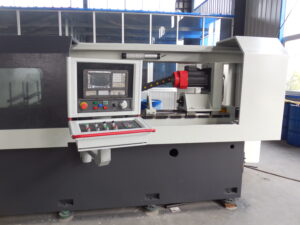

CNC single-axis gun drilling machine tools mainly use SIEMENS, FANUC or KND CNC systems to control the processing process and realize automation. Gun drilling mainly uses single spindle, dual spindle or quad spindle structure, which can process 1, 2 or 4 workpieces at the same time, and is suitable for processing coaxial holes on shaft parts; linear guide rails are used to ensure the relative motion accuracy between the tool and the workpiece.

2.Main functions of machine

High-precision deep hole processing: Processing coaxial holes of shaft parts of various materials, with high hole diameter accuracy, good surface roughness, and small hole center deviation.

Wide material adaptability: Suitable for alloy steel, stainless steel, aluminum alloy and other materials.

Automated processing: Automatically complete drilling and other operations according to the instructions of the CNC system, and can store a variety of process programs.

3.Main parameter indicators

Drilling range：Φ3～Φ20mm/Φ3～Φ30mm/Φ6～Φ40mm

Maximum drilling depth：500/1000/1500/2000/2500 mm

Workpiece outer diameter range：Φ15～Φ100mm

ระบบ CNC： SIEMENS/FANUC/KND
